Pipe Saddle Repair Clamp

Product Overview

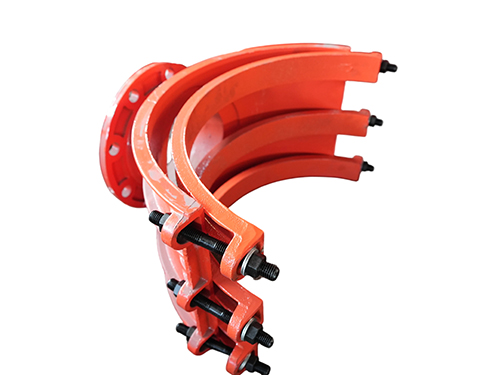

A Pipe Saddle Repair Clamp is used for repairing leaks, cracks, corrosion, and localized damage around pipe saddle connections. Its saddle-shaped structure is designed to fit the curved surface of the main pipe while providing a reinforced connection around the affected area.

The assembly generally consists of a metal clamp body, sealing gasket, fastening bolts, and nuts. During installation, the clamp is positioned over the damaged section and tightened to compress the gasket against the pipe surface.

Structure and Sealing

The saddle-shaped clamp body follows the outside diameter of the pipeline to provide stable contact around the repair area. The sealing gasket is placed between the clamp and pipe surface to cover the damaged section and create a sealing interface.

The bolted fastening system applies clamping force to the assembly. The saddle configuration can also be designed around different pipe diameters, branch sizes, and connection arrangements.

Specifications

• Application: Pipe repair and saddle connection sealing

• Main Pipe Diameter: Available for different nominal pipe sizes

• Branch/Saddle Size: Configurable according to connection dimensions

• Clamp Body: Metal construction

• Sealing Element: Rubber or elastomer gasket

• Fastening: Bolts and nuts

• Connection Type: Mechanical repair connection

• Surface Protection: Configurable according to service environment

• Dimensions: Selected according to pipe diameter and damaged area

Applications

Pipe Saddle Repair Clamp can be used for:

• Saddle connection leak repair

• Branch pipe repair

• Localized pipeline damage sealing

• Corrosion and crack repair

• Water supply pipeline maintenance

• Industrial piping systems

• Utility and fire protection pipelines

Selection should consider the main pipe outside diameter, branch diameter, pipe material, operating pressure, temperature, and the size and position of the damaged area.
