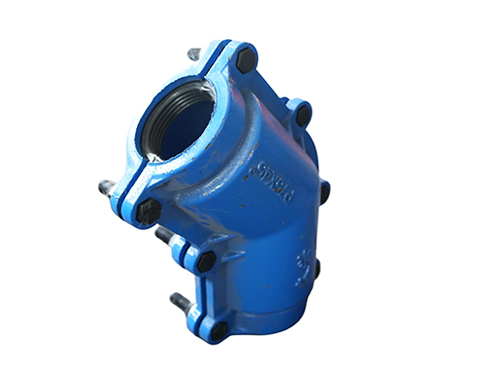

45 Degree Pipe Repair Clamp

Product Overview

A 45 Degree Pipe Repair Clamp is designed for localized maintenance of pipeline sections where pipes are connected or redirected at a 45-degree angle. It can be used to repair leakage, cracks, corrosion, and localized damage around angled pipe connections.

The assembly generally consists of an angled metal clamp body, sealing gasket, bolts, and nuts. The shaped structure follows the geometry of the connection and provides external clamping and sealing around the affected area.

Structure and Sealing

The clamp body is configured for a 45-degree pipeline connection, allowing it to accommodate the angle between the connected pipe sections. Compared with a standard straight pipe repair clamp, its structure is adapted to an angled connection.

A sealing gasket is positioned between the clamp and pipe surface. After the fastening bolts are tightened, the clamp compresses the gasket around the damaged section to create a mechanical sealing interface.

Specifications

• Product Type: 45 degree pipe repair clamp

• Connection Angle: 45°

• Pipe Diameter: Available for different pipe sizes

• Clamp Body: Metal construction

• Sealing Element: Rubber or elastomer gasket

• Fastening System: Bolts and nuts

• Application: Angled pipe and 45-degree connection repair

• Surface Treatment: Configurable according to service environment

• Configuration: Selected according to pipe diameter, connection geometry, and damaged area

Applications

45 Degree Pipe Repair Clamp can be used for:

• 45-degree pipe connection leak repair

• Angled pipeline maintenance

• Elbow and bend repair

• Pipeline crack sealing

• Localized corrosion repair

• Water supply pipelines

• Municipal distribution systems

• Industrial and utility piping

When selecting a 45 Degree Pipe Repair Clamp, the pipe outside diameter, connection angle, pipe material, operating pressure, temperature, fitting geometry, and damaged section should be considered to determine the appropriate clamp and gasket configuration.
