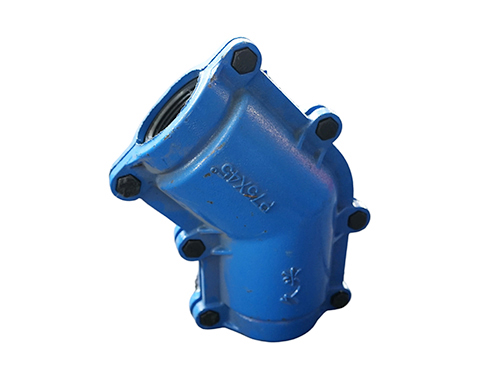

Elbow Leak Repair Clamp

Product Overview

An Elbow Leak Repair Clamp is designed for repairing leakage and localized damage on pipe elbows and curved pipeline sections. It can be used where cracks, corrosion, pinholes, or other localized defects occur around an elbow connection.

The repair assembly generally consists of a shaped metal clamp body, sealing gasket, bolts, and nuts. The clamp follows the curved profile of the elbow and applies external pressure to the sealing area.

Structure and Sealing

The clamp body is formed according to the geometry and angle of the elbow, allowing it to cover the damaged section of the curved pipe. A sealing gasket is positioned between the clamp and pipe surface to cover the leakage path.

When the fastening bolts are tightened, the clamp compresses the gasket against the elbow surface. The resulting mechanical pressure helps seal the damaged area and maintain the repair assembly in position.

Specifications

• Product Type: Elbow leak repair clamp

• Application: Pipe elbow leak repair

• Elbow Angle: Available according to connection geometry

• Pipe Diameter: Configurable for different pipe sizes

• Clamp Body: Metal construction

• Sealing Element: Rubber or elastomer gasket

• Fastening System: Bolts and nuts

• Connection Type: Mechanical repair connection

• Surface Treatment: Configurable according to service environment

• Configuration: Selected according to elbow dimensions and damaged area

Applications

Elbow Leak Repair Clamp can be used for:

• Pipe elbow leak sealing

• Curved pipeline repair

• Elbow crack repair

• Localized corrosion repair

• Pinhole leak repair

• Water supply pipelines

• Industrial piping systems

• Utility and fire protection pipelines

When selecting an Elbow Leak Repair Clamp, the elbow outside diameter, connection angle, pipe material, operating pressure, temperature, curvature, and damaged area should be considered to determine the appropriate clamp dimensions and sealing configuration.
