Saddle Tee Repair Clamp

Product Overview

A Saddle Tee Repair Clamp is designed for localized repair of pipeline connections where a branch outlet is formed on the main pipe through a saddle or tee configuration. It can be used to address leakage, cracks, corrosion, and localized mechanical damage around the connection area.

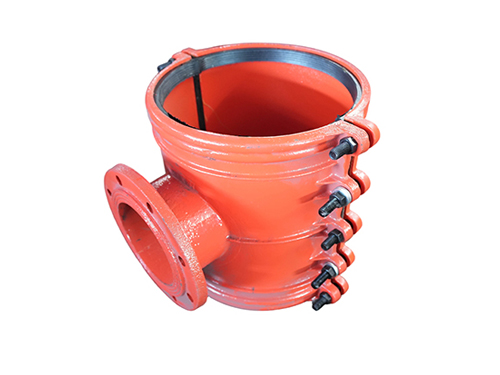

The repair assembly generally consists of a saddle-shaped metal clamp body, sealing gasket, bolts, and nuts. The body follows the outside contour of the main pipe and branch connection, while the gasket provides a sealing interface over the affected section.

Structure and Sealing

The saddle tee structure combines the curved profile of the main pipe with a branch outlet section. This configuration allows the repair clamp to accommodate the geometry of a branch connection rather than a straight pipe section.

A sealing gasket is positioned between the clamp body and pipe surface. When the fastening bolts are tightened, the clamp compresses the gasket around the damaged or leaking area to form a mechanical seal.

Specifications

• Product Type: Saddle tee repair clamp

• Main Pipe Diameter: Available for different pipe sizes

• Branch Outlet Diameter: Configurable according to tee dimensions

• Clamp Body: Metal construction

• Sealing Element: Rubber or elastomer gasket

• Fastening System: Bolts and nuts

• Connection Type: Mechanical repair connection

• Surface Treatment: Configurable according to service environment

• Configuration: Selected according to main pipe, branch outlet, and damaged area dimensions

Applications

Saddle Tee Repair Clamp can be used for:

• Saddle tee connection leak repair

• Branch pipe damage repair

• Localized pipeline leakage sealing

• Corrosion and crack repair

• Water supply pipeline maintenance

• Municipal water distribution systems

• Industrial piping systems

• Utility and fire protection pipelines

When selecting a Saddle Tee Repair Clamp, the main pipe outside diameter, branch outlet size, pipe material, operating pressure, temperature, connection geometry, and damaged section should be considered to determine the appropriate clamp and gasket configuration.
