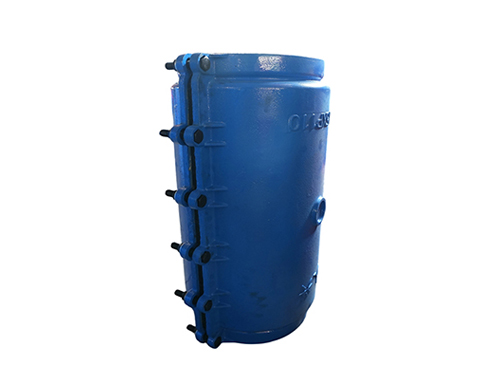

Extended Socket Repair Clamp

Product Overview

An Extended Socket Repair Clamp is used for localized repair of pipelines affected by leaks, cracks, corrosion, or surface damage. Its extended socket-style structure provides a longer sealing and support area than a standard repair clamp, making it suitable for repair sections that require additional coverage.

The clamp assembly generally consists of a metal clamp body, sealing gasket, bolts, and nuts. The extended configuration allows the repair area to be enclosed over a longer section of pipe while maintaining a mechanical fastening connection.

Structure and Sealing

The clamp body is formed to fit around the outside diameter of the pipe. An internal sealing gasket is positioned between the clamp and pipe surface to cover the damaged section.

When the bolts are tightened, the clamp body compresses the gasket against the pipe surface, helping create a sealed repair interface. The extended socket design provides additional contact length around the repair section and can be configured according to the pipe diameter and damaged-area dimensions.

Specifications

• Product Type: Extended socket repair clamp

• Application: Pipeline leak and damage repair

• Pipe Diameter: Configurable according to pipe size

• Clamp Body: Metal construction

• Sealing Element: Rubber or elastomer gasket

• Fastening System: Bolts and nuts

• Connection Type: Mechanical sealing connection

• Repair Coverage: Extended sealing and reinforcement area

• Surface Treatment: Configurable according to service environment

• Configuration: Selected according to pipe diameter and repair requirements

Applications

Extended Socket Repair Clamp can be used for:

• Pipeline leak repair

• Pipe crack and corrosion repair

• Localized pipe damage

• Extended repair sections

• Water supply pipelines

• Industrial piping systems

• Municipal utility pipelines

• Pipeline maintenance and repair

When selecting an Extended Socket Repair Clamp, the pipe outside diameter, damaged section length, pipe material, operating pressure, temperature, and installation space should be considered to determine the appropriate clamp and gasket configuration.
