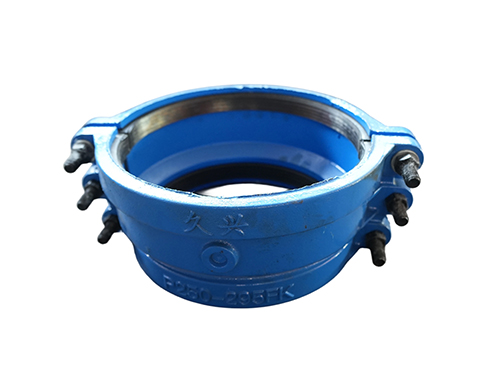

Reducer Repair Clamp

Product Overview

A Reducer Repair Clamp is designed for localized repair at reduced or stepped pipeline sections. It can be used to address leaks, cracks, corrosion, and other localized defects around connections between pipes of different outside diameters.

The clamp assembly typically consists of a specially shaped metal clamp body, sealing gasket, bolts, and nuts. Its stepped or tapered configuration allows the repair assembly to accommodate the transition between the larger and smaller pipe sections.

Structure and Sealing

Unlike a standard pipe repair clamp designed for a uniform pipe diameter, a Reducer Repair Clamp incorporates different internal profiles to match the two connected pipe sizes.

The sealing gasket is positioned between the clamp and pipe surface and follows the transition area between the different diameters. When the fastening bolts are tightened, the clamp compresses the gasket against the pipe to create a mechanical sealing interface.

The clamp dimensions can be configured according to the large pipe diameter, small pipe diameter, transition length, and damaged area.

Specifications

• Product Type: Reducer repair clamp

• Application: Reduced pipe section and transition repair

• Large Pipe Diameter: Configurable according to pipeline size

• Small Pipe Diameter: Configurable according to connected pipe size

• Clamp Body: Metal construction

• Sealing Element: Rubber or elastomer gasket

• Fastening System: Bolts and nuts

• Connection Type: Mechanical sealing connection

• Surface Treatment: Configurable according to service environment

• Configuration: Selected according to pipe dimensions and transition geometry

Applications

Reducer Repair Clamp can be used for:

• Reduced pipe section leak repair

• Different-diameter pipe connection repair

• Transition section sealing

• Pipeline crack repair

• Localized corrosion repair

• Water supply pipelines

• Industrial piping systems

• Municipal and utility pipelines

When selecting a Reducer Repair Clamp, the large and small pipe outside diameters, transition geometry, pipe material, operating pressure, temperature, damaged section, and available installation space should be considered to determine the appropriate clamp and gasket configuration.
