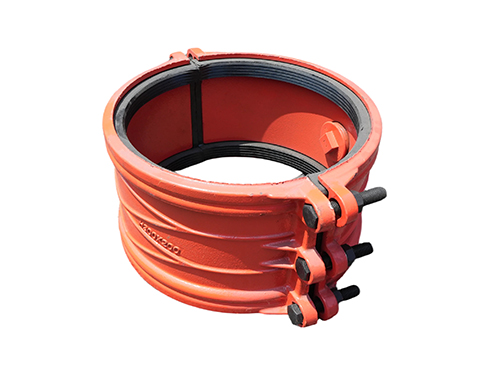

Pipeline Repair Clamp

Product Overview

A Pipeline Repair Clamp provides an external mechanical solution for repairing localized defects on pipelines without necessarily replacing the complete damaged section. It can be used for pipe leakage, surface cracks, corrosion damage, pinholes, and other accessible defects.

The typical assembly consists of a metal clamp body, sealing gasket, bolts, and nuts. The clamp is positioned around the affected pipe section and secured with the fastening system to compress the gasket against the pipe surface.

Structure and Sealing

The clamp body is designed to surround the outside diameter of the pipeline and provide a defined repair area. A sealing gasket is installed between the clamp and pipe surface, covering the damaged section and forming the sealing interface.

When the fastening bolts are tightened, clamping pressure is transferred to the gasket and pipe surface. The resulting mechanical seal helps isolate the localized defect while the clamp body provides external reinforcement.

Different clamp lengths and configurations can be selected according to pipe diameter, damage dimensions, pipe material, and operating conditions.

Specifications

• Product Type: Pipeline repair clamp

• Application: Pipeline leak and localized damage repair

• Pipe Diameter: Available for different pipe sizes

• Clamp Body: Metal construction

• Sealing Element: Rubber or elastomer gasket

• Fastening System: Bolts and nuts

• Repair Coverage: Configurable according to damaged section

• Connection Type: Mechanical sealing connection

• Surface Treatment: Configurable according to service environment

• Configuration: Selected according to pipe dimensions and application requirements

Applications

Pipeline Repair Clamp can be used for:

• Pipeline leak repair

• Pipe crack sealing

• Pinhole repair

• Localized corrosion damage

• Water supply pipelines

• Industrial process piping

• Municipal pipeline systems

• Utility and infrastructure pipelines

• Fire protection piping systems

Before selecting a Pipeline Repair Clamp, the pipe outside diameter, damaged section length and location, pipe material, wall condition, operating pressure, temperature, and installation environment should be evaluated to determine the appropriate clamp and gasket configuration.
